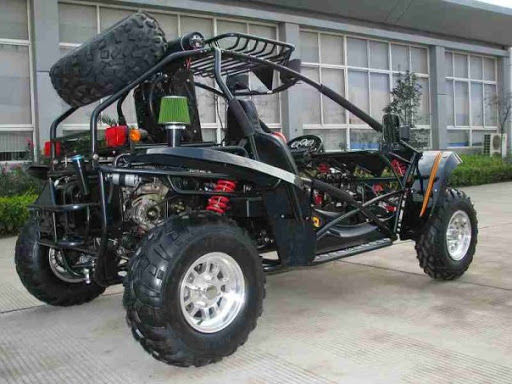

2012 TWIN SEATER 800cc BUGGY
800cc (3 cycl) with BONUS WINCH, SPOTTIES & TOWBAR
COMES IN BLACK or BLUE
Model: Kinroad XT 800GK-2A

2012 TWIN SEATER 800cc BUGGY

SKU: 0010
£3,850.00 Regular Price
£3,272.50Sale Price

  • DIMENSIONS

    Overall Length --- 2730mm

    Overall Width --- 1700mm

    Overall Height --- 1480mm

    Carton Size --- 2550mm x 1470mm x 759mm

    Wheelbase --- 1925mm

    Front Track Rear Track --- 1440mm 1405mm

    Ground Clearance --- 280mm


    ENGINE

    Type --- 3-Bore, 4-Stroke, Liquid-cooled

    Bore x Stroke --- 68.5mm×72mm

    Displacement --- 796 cc

    Compression ratio --- 8.7:1

    Carburettor --- BJH101E or CSH101

    EMax Power --- 26.2kw/5500rpm

    Maximum Torque --- 57/2500~3000Nm/r/min

    Starting --- Electric

    Ignition --- C.D.I

    Lubrication --- Force & Splash

    Transmission / Steering --- Manual clutch, 4 shift/Reverse/ Right Hand

    Spark Plug --- F6T or F6TC

    Plug gap --- 0.7 ± 0.1mm

    Fuel type --- Fuel type

    Lubricate oi --- l≥ 0°C SAE-15W/40ďźœ 0°C SAE-10W/30


    SPECIFICATIONS

    Brake Track --- < 7m @ 20miles/h

    Top speed --- 55 miles/h (or limited as customers require)


    CHASSIS

    Front, Rear brake

    Hydraulic disc, foot control

    Front tire --- 25×8-12

    Rear tire --- 25×10-12

    Front Suspension --- Independent Dual A-Arm

    Rear Suspension --- Independent Dual A-Arm

    Final Drive --- Shaft driven

    TIRE PRESSURE

    Front --- 70kpa 0.7kg/c ÄƒĹ˝Ä„ 10psiRear70kpa 0.7kg/c ÄƒĹ˝Ä„ 10psi

    WEIGHT

    Net Weight --- 500kg
